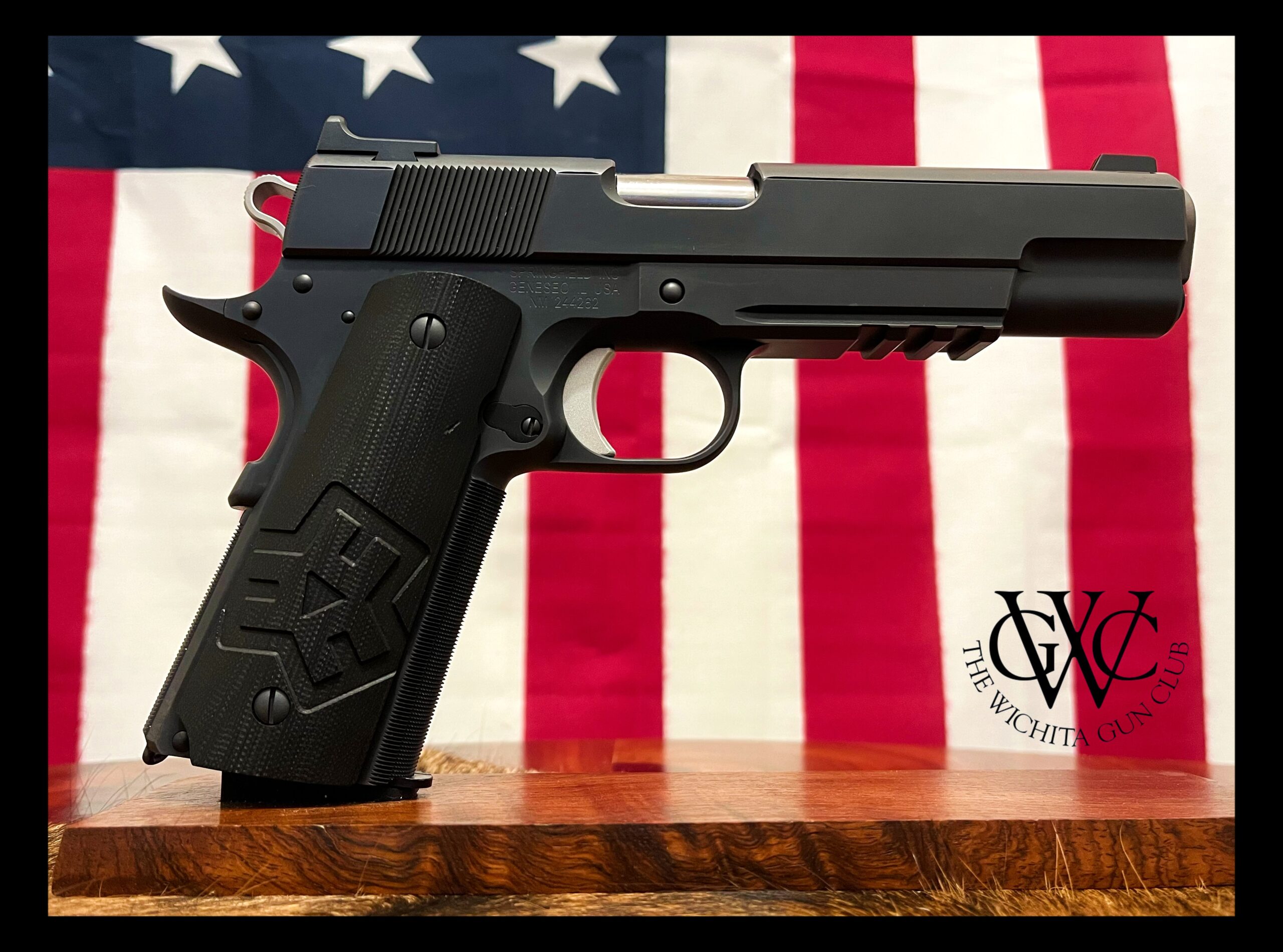

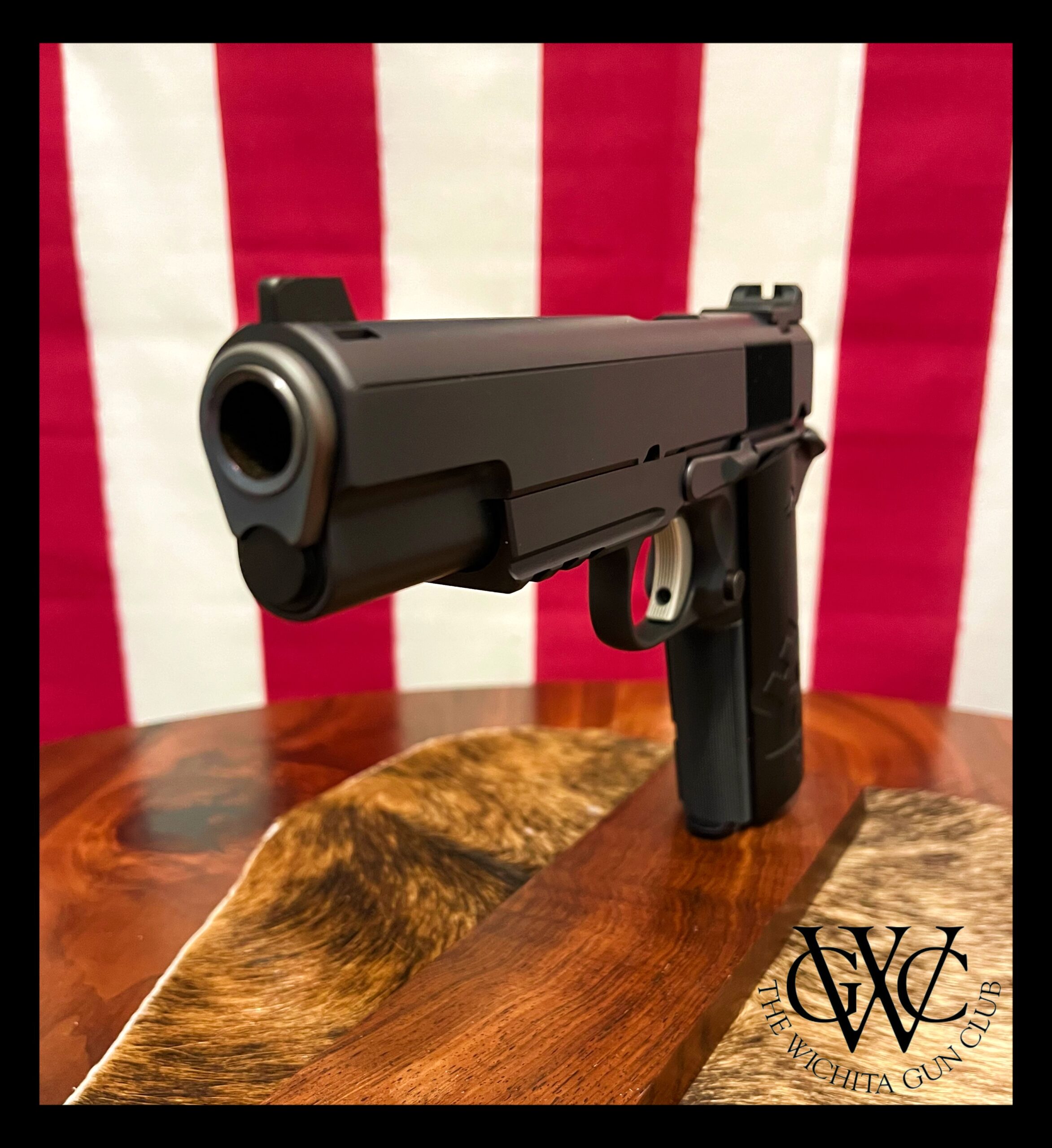

Heirloom Precision Jason Burton Springfield Armory Rail Gun in 45ACP, Now With Ivory Grips
Original price was: $18,500.00.$16,500.00Current price is: $16,500.00.
Sale!
Product Information:

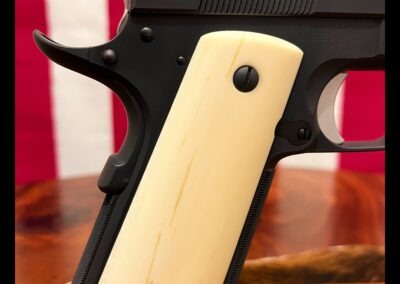

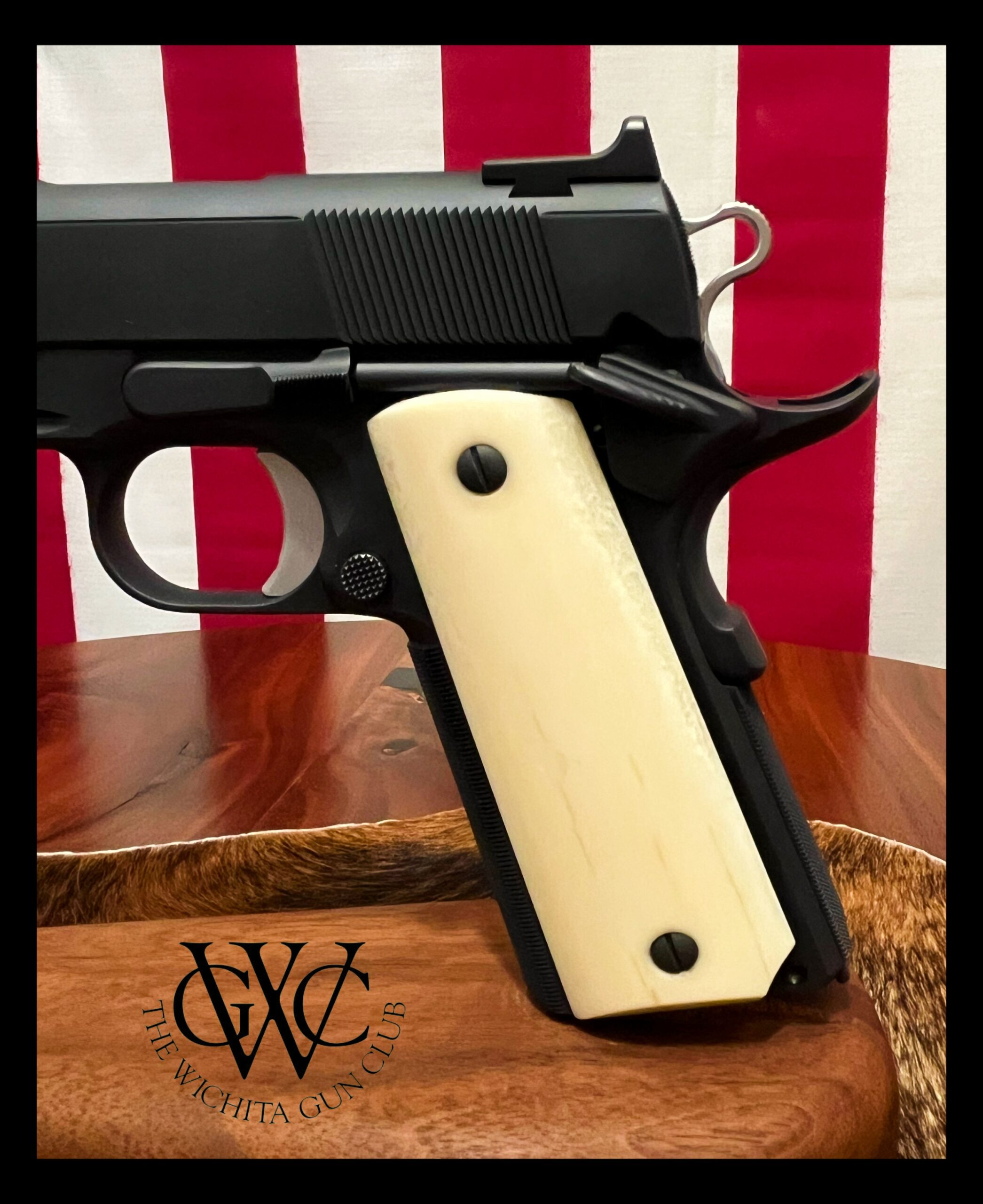

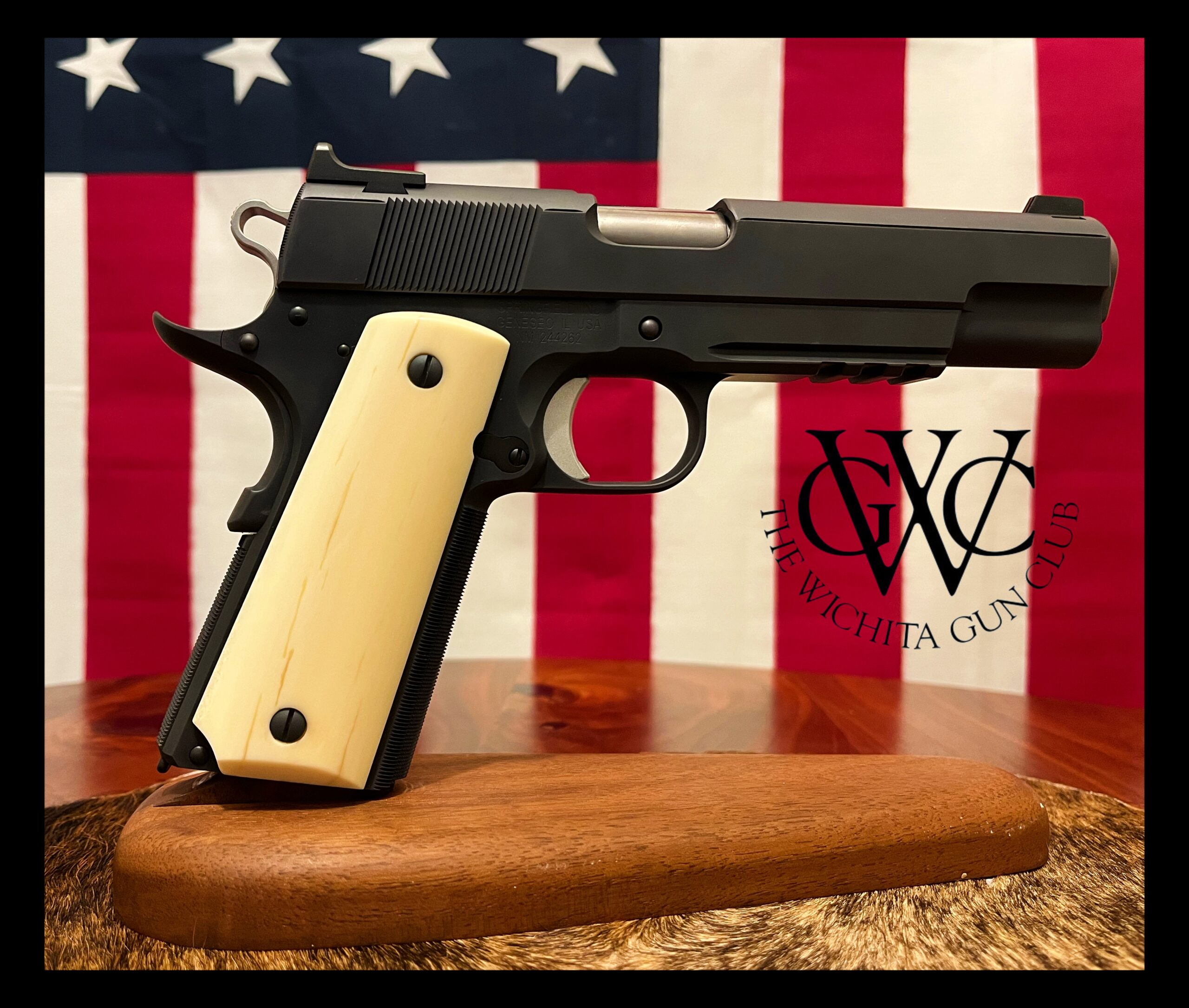

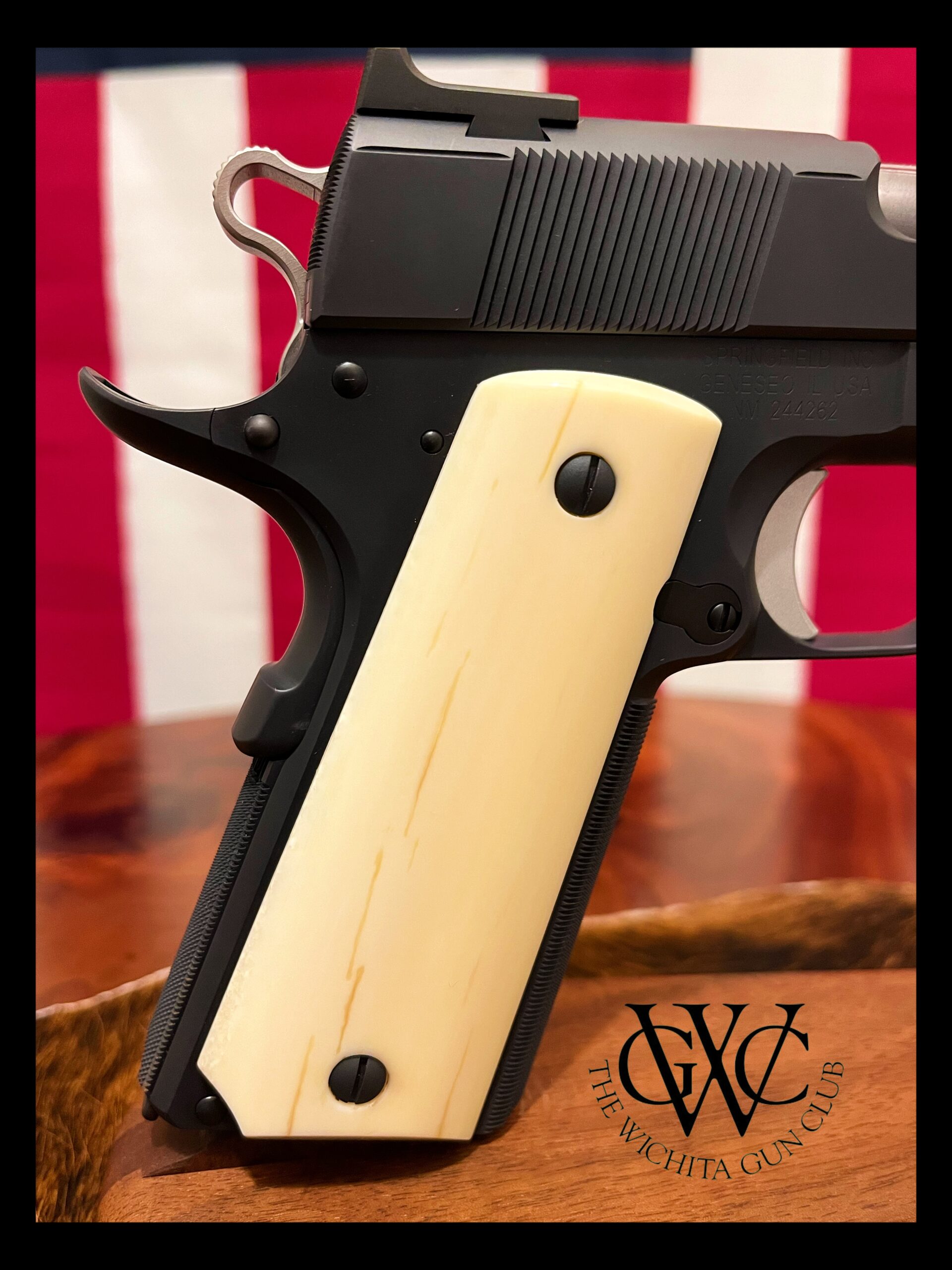

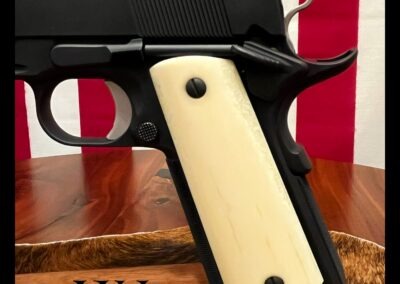

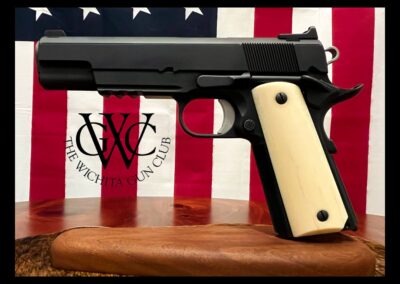

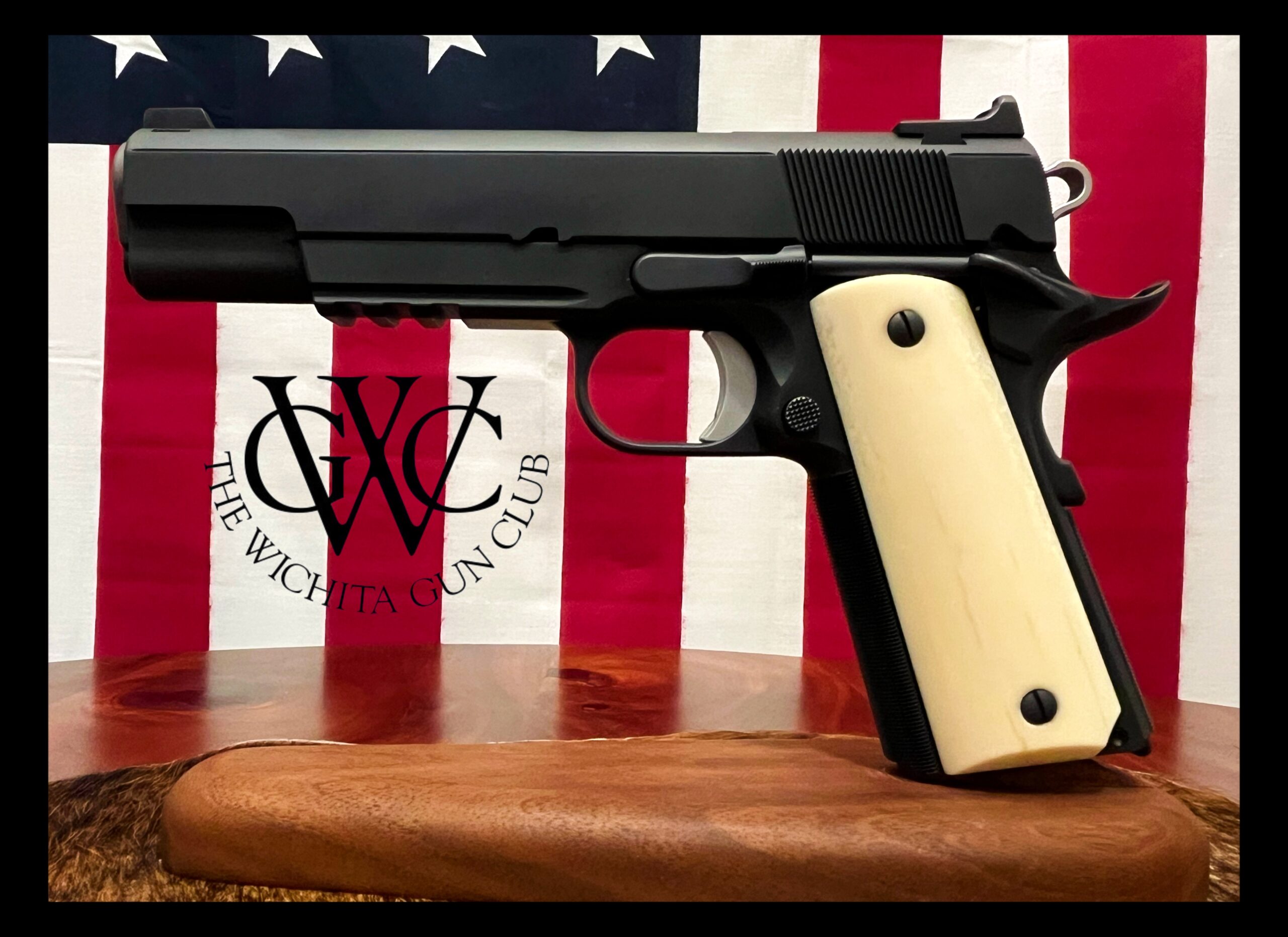

This pistol is back, now upgraded with mammoth ivory grips by Boone Trading.
This pistol is a rare opportunity to own a custom 1911 made by the Jason Burton of Heirloom Precision and not wait 4-5 years for it.
This pistol was originally blued by Jason, it has since had a full DLC coating added to it. The gun has been back to Jason for inspection since the DLC was added and it was as he built it and is still covered by his lifetime warranty.
The following comes from the signed HP build sheet:

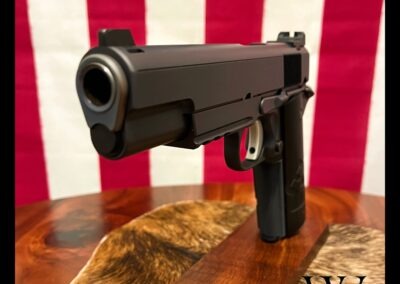

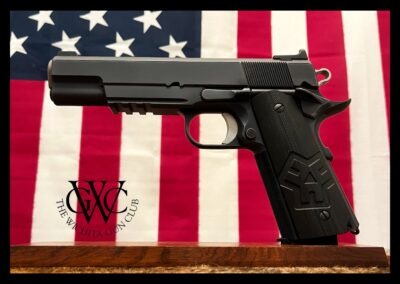

Build Sheet, Springfield Rail Gun, s/n NM244262
- Completely detail frame and slide
- Fit Caspian Slide to oversized frame
- High cut under rigger guard

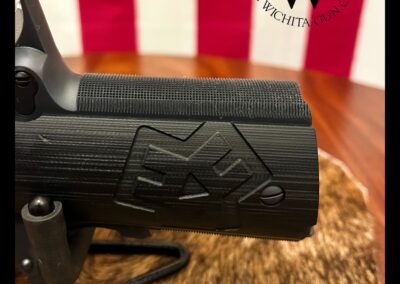

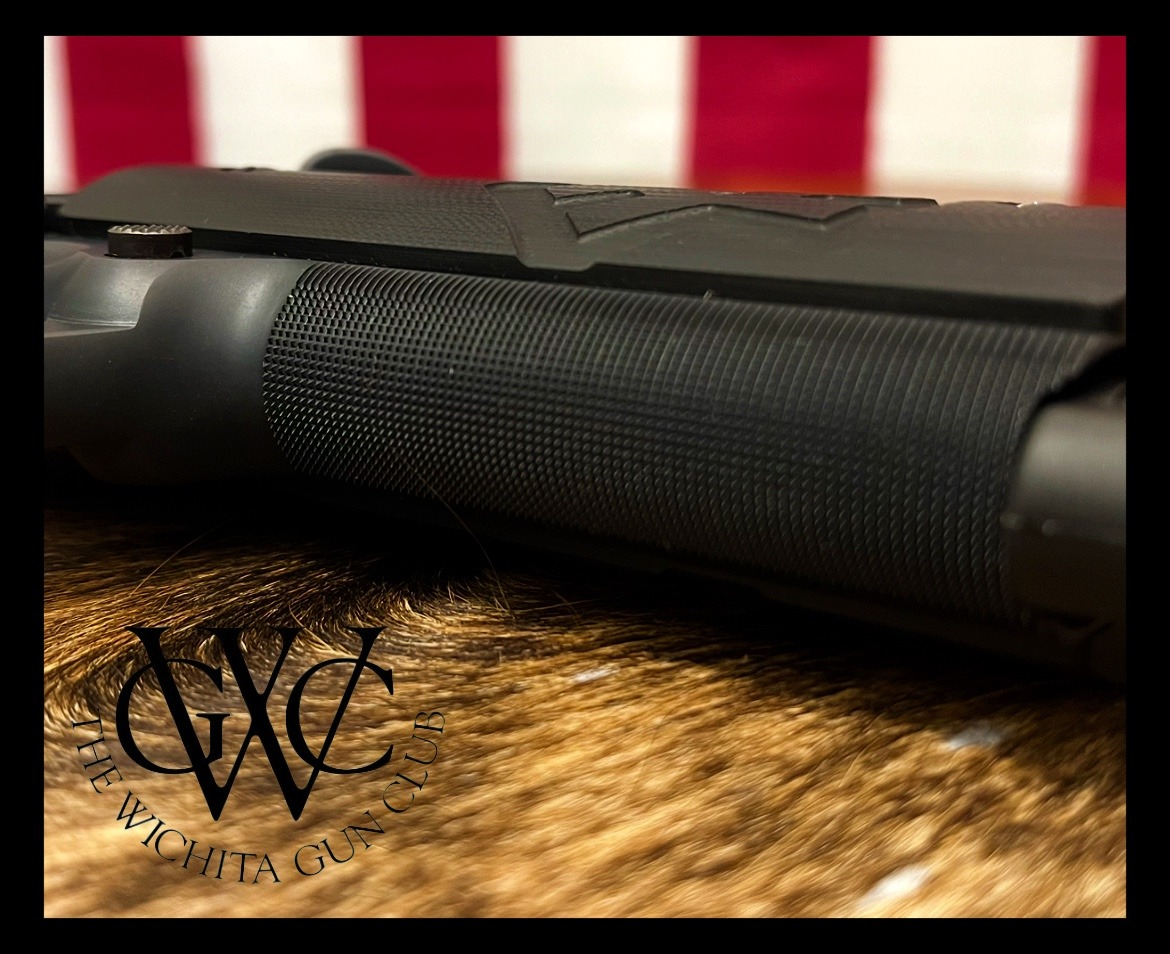

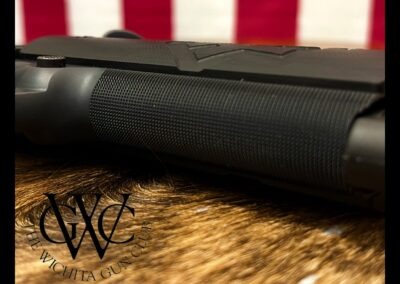

- Hand-checker front strap 30lpi

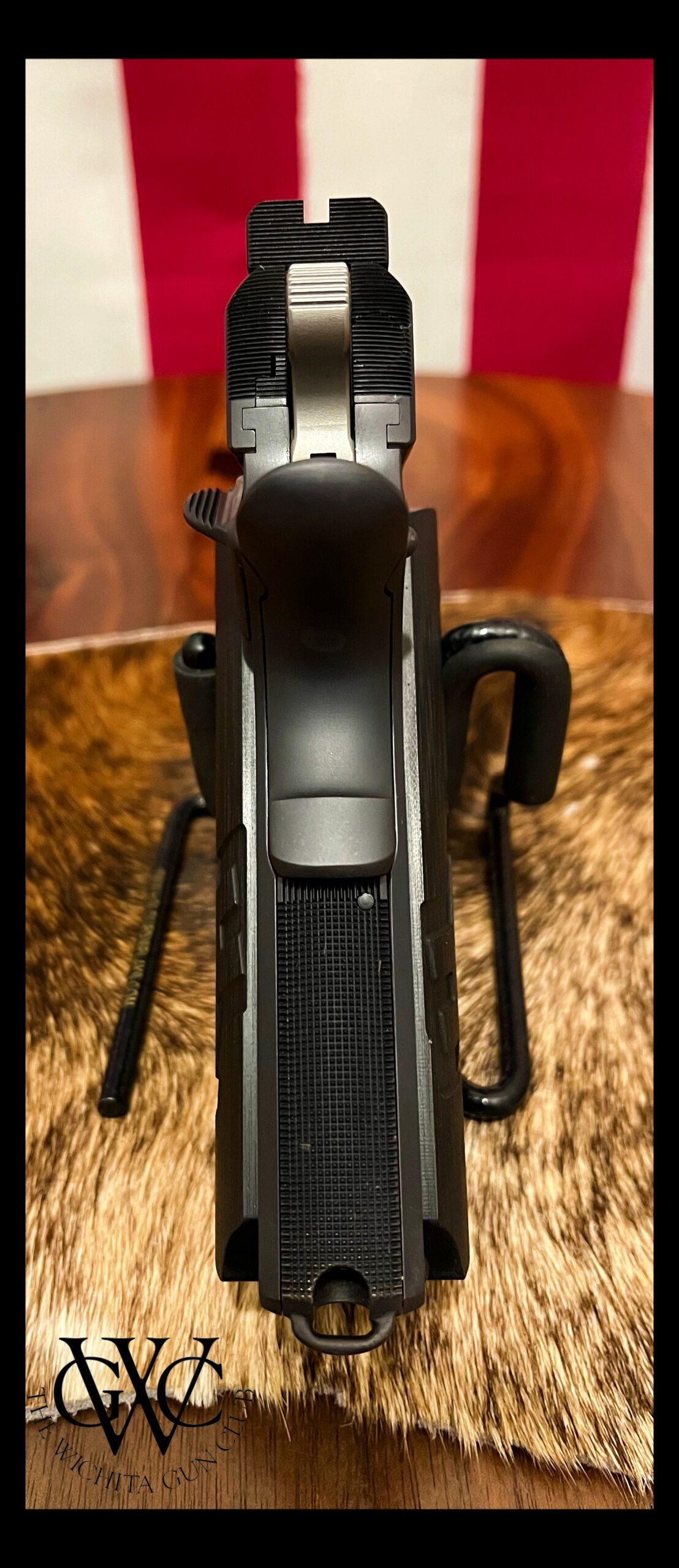

- Modify mainspring housing for lanyard loop, silver solder in place

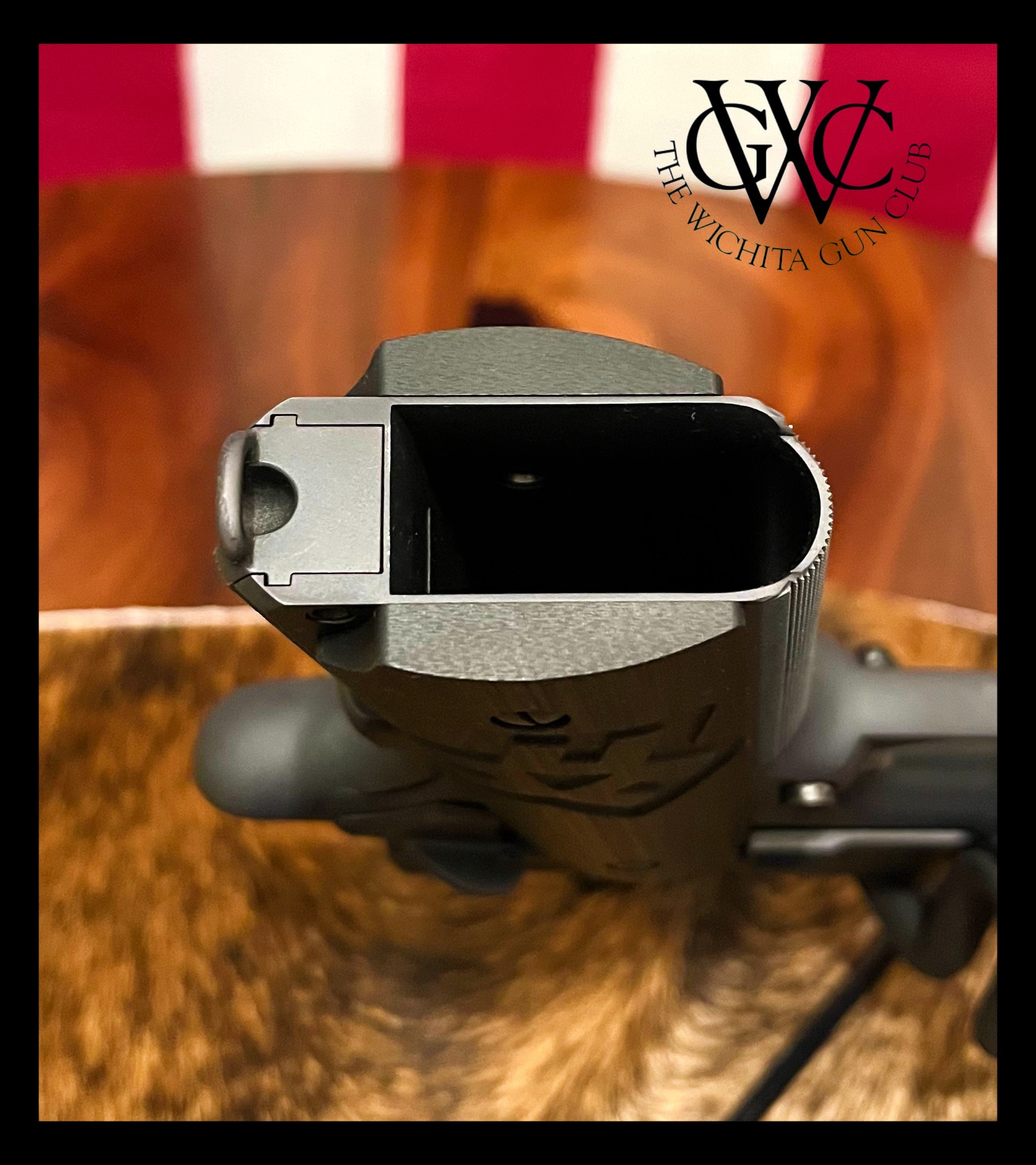

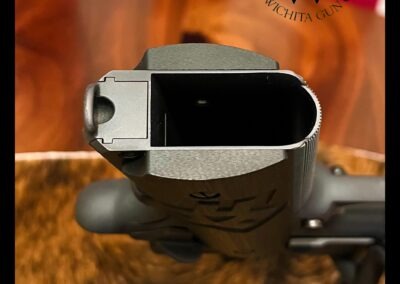

- Hand-file beveled mag-well
- Fit standard length checkered magazine catch, relieve to prevent tapping magazines
- Install EGW machined slide stop serrate on bottom at 40lpi

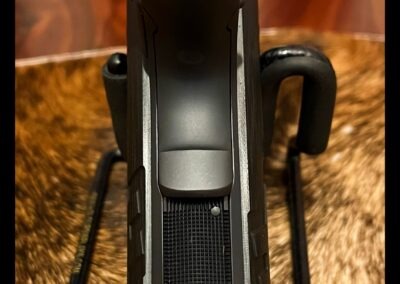

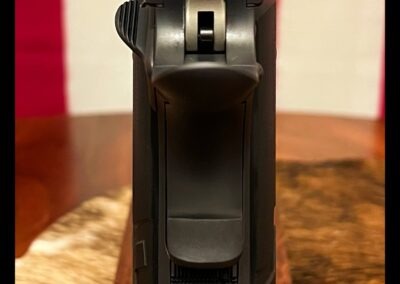

- Fit S&A beavertail grip safety, high sweep
- Fit BM styled thumb safety, set detent, de-horn and radius as needed
- Best quality trigger job using Wilson Combat hammer, sear, & disconnect, set at 4#
- Fit medium length solid aluminum trigger

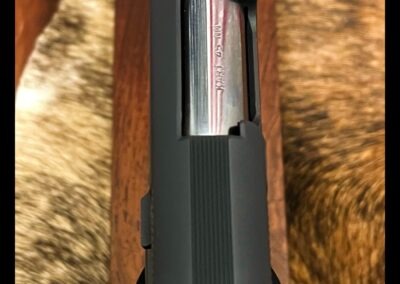

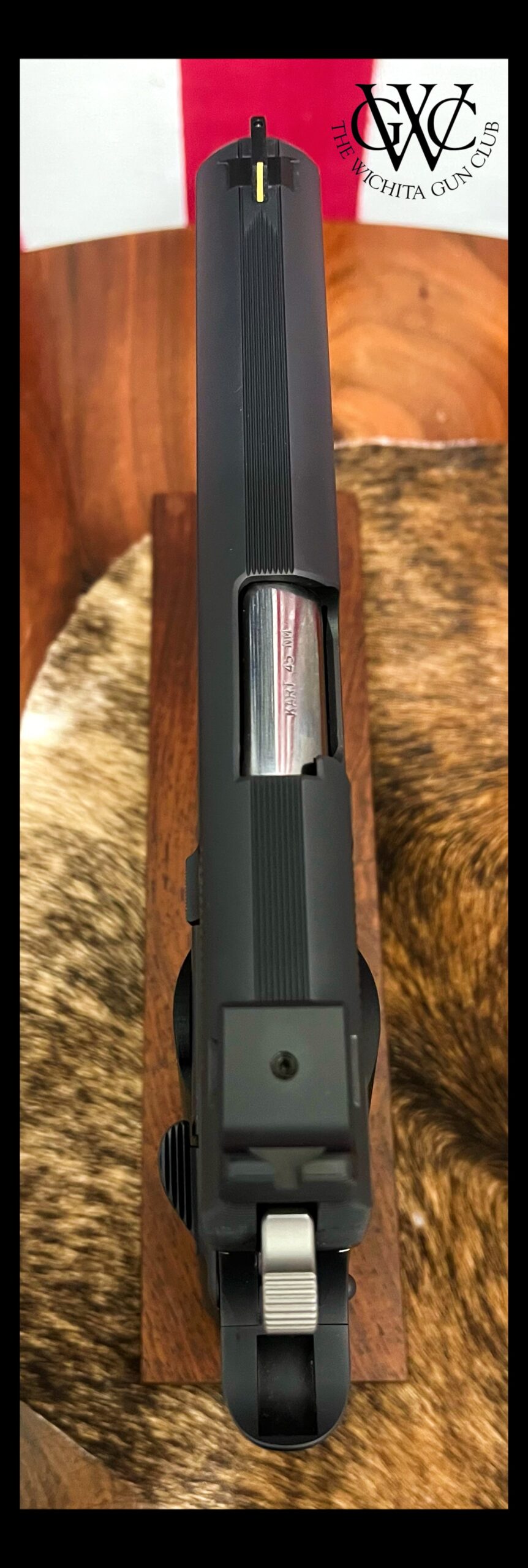

- Flatten & serrate slide top at 30lpi broad arrow pattern
- Blend rear of frame and slide
- Install Heinie Slant-Pro rear sight with .125″ notch, reshape and modify for one-handed operation, serrate at 40lpi, wrapped edges

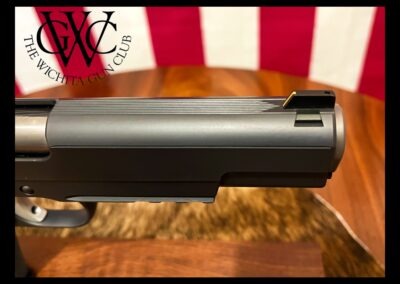

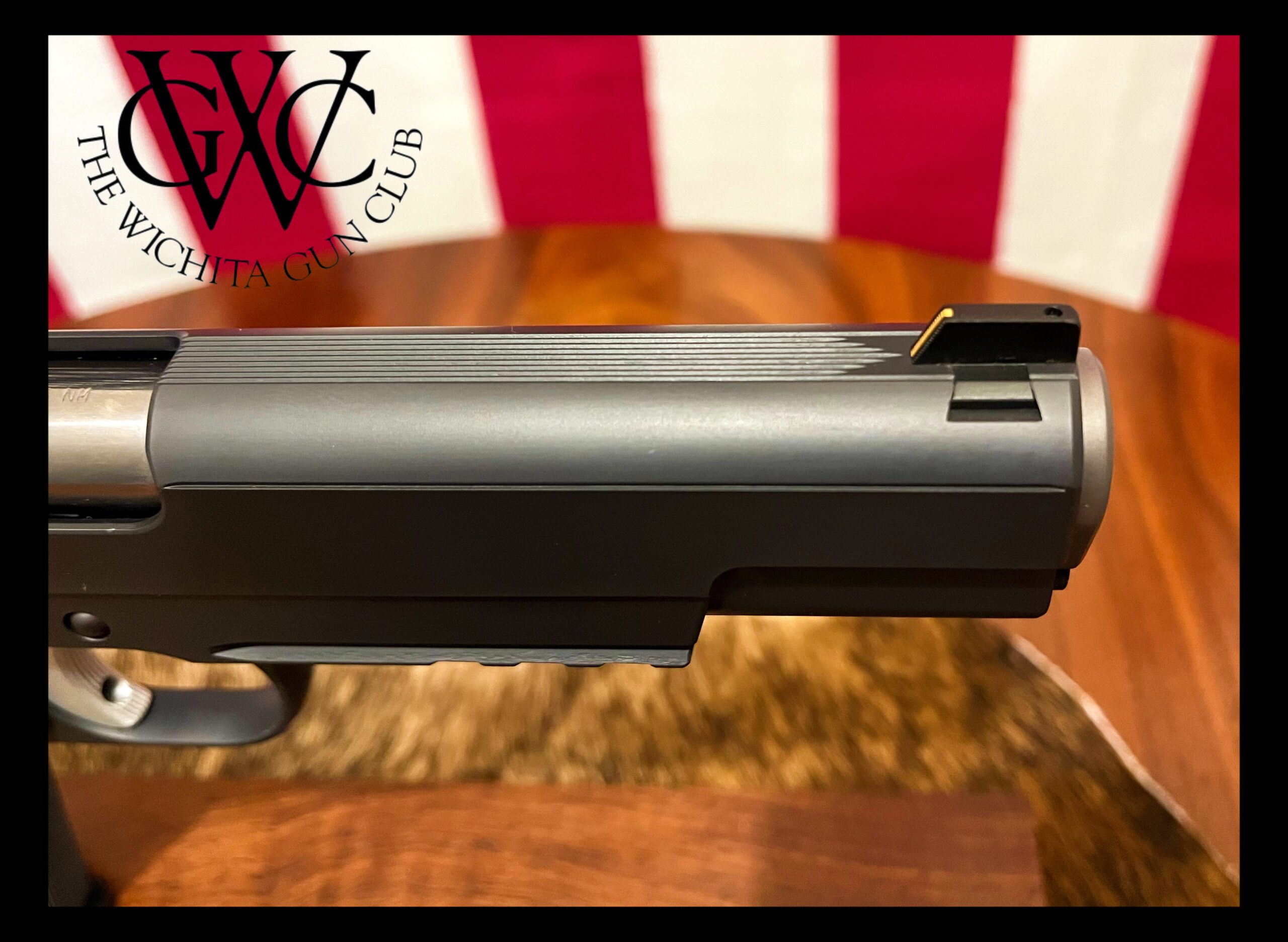

- Install .110″ wide dovetail front sight, blend to slide, serrate at 75lpi
- Add 24K Gold Line insert to front sight

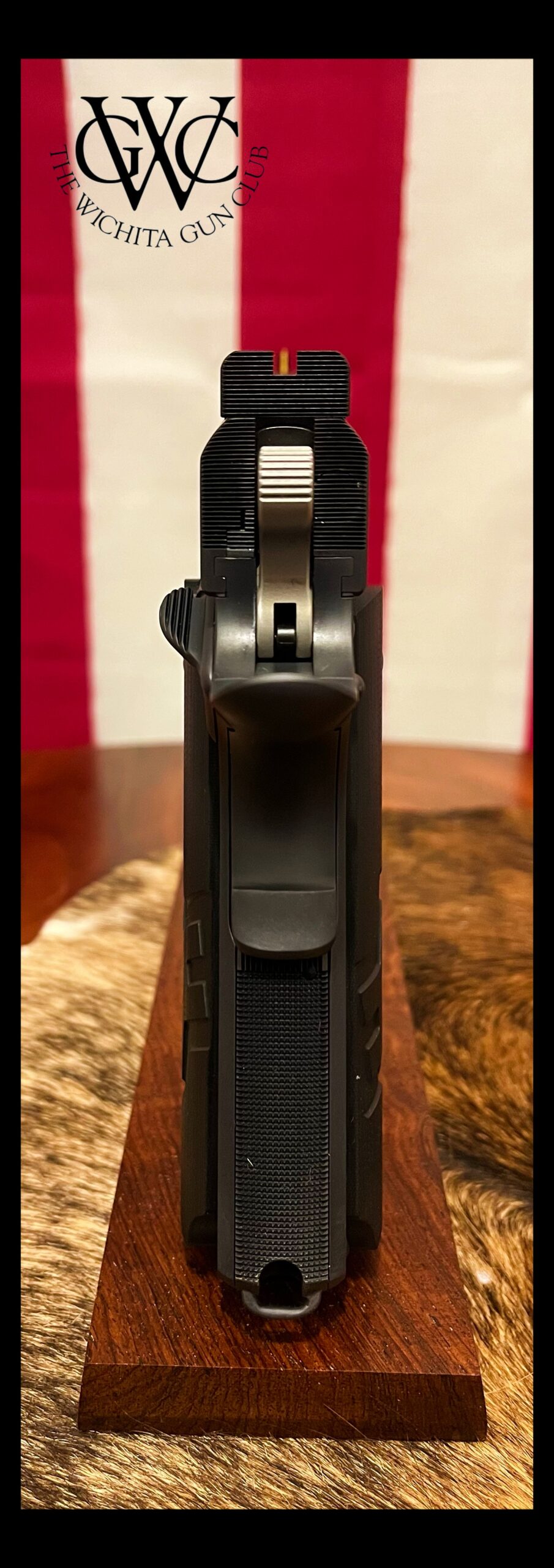

- Serrate rear of slide at 40lpi and blend to rear sight
- True breech face
- Machine feed-ramp to correct dimensions
- Machine vertical impact surface release

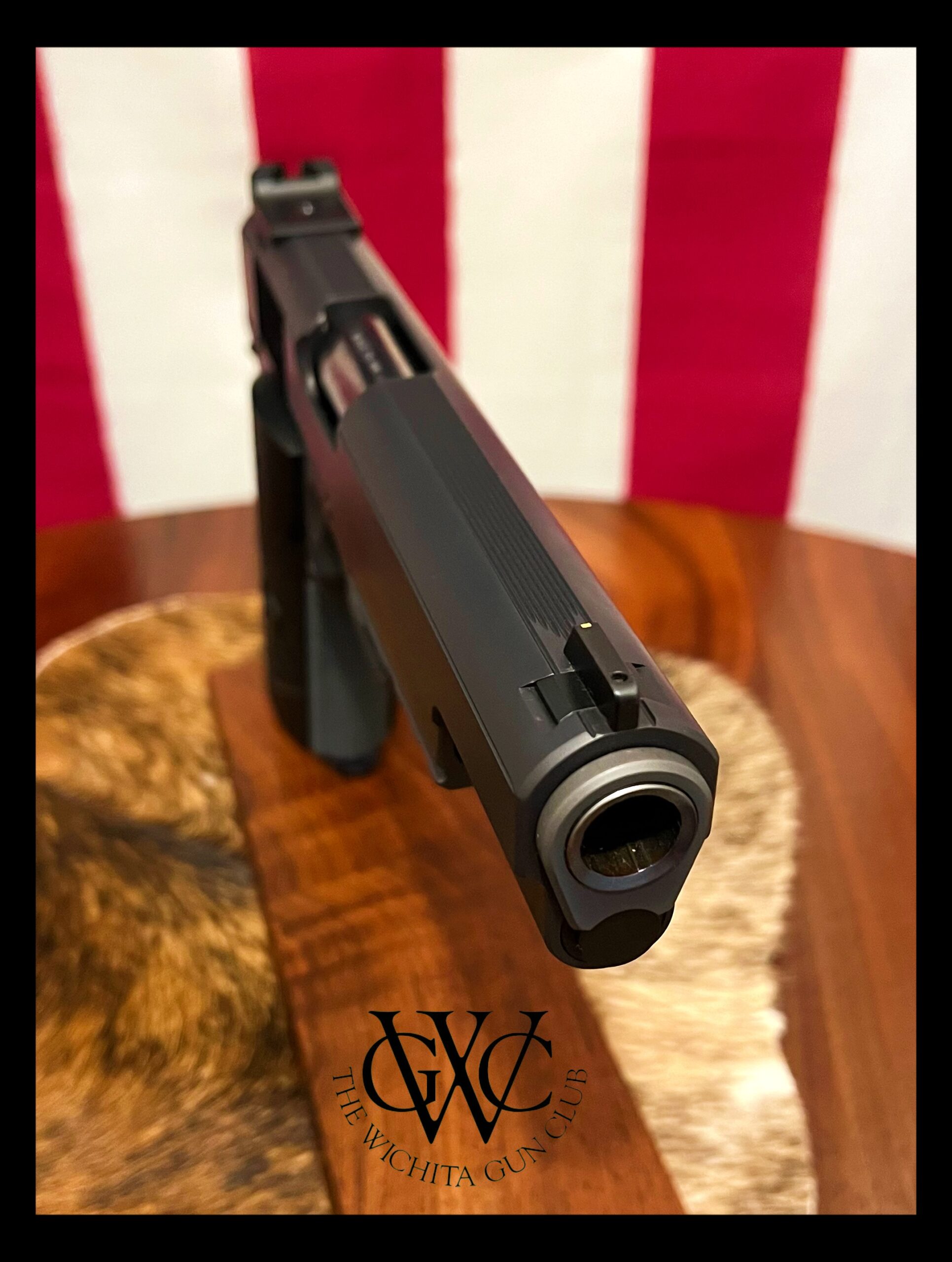

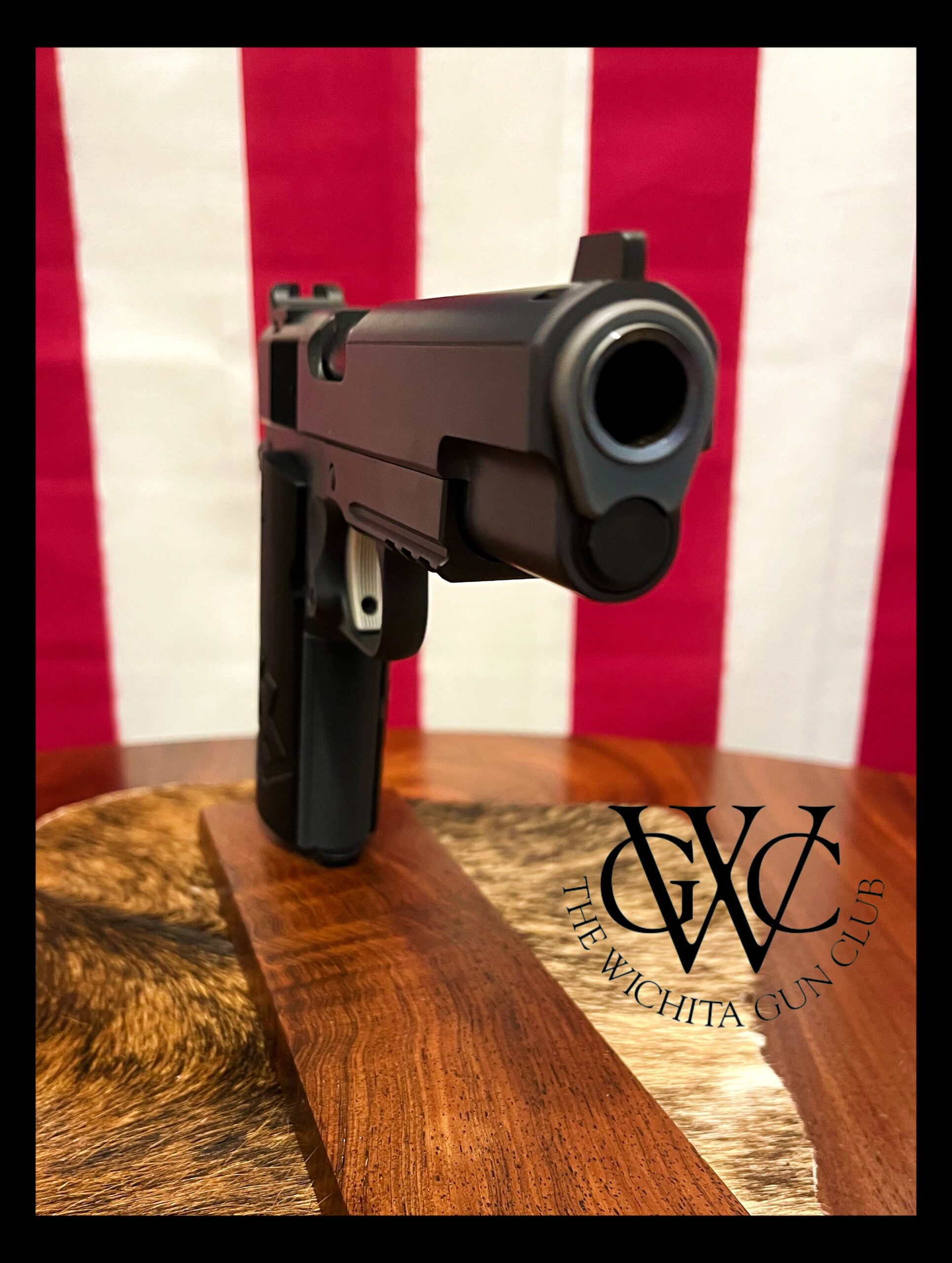

- Fir Kart match grade barrel, crown @ 20°, chamber for 45ACP
- Fit EGW stainless steel barrel bushing, beveled edge
- Fit EGW square bottom firing pin stop, radius as needed
- Fit bar-stock extended ejector
- Complete 1911 dependability package including Wilson “Bulletproof” extractor, polish feed ramp, throat barrel, polish breech face, chamfer firing pin hole
- Machine frame dust-cover to desired length, 3 rail slots
- Machine slide for ball cuts
- Lower and flare ejection port – clearance for live round ejection
- Fit and stake bar-stock plunger tube
- Complete Wolff spring set including 16# recoil spring and 23# main spring
- Complete hand-filed de-horning
- Detail prep pistol, satin matte blast
- Shortened stock screw bushings to prevent binding

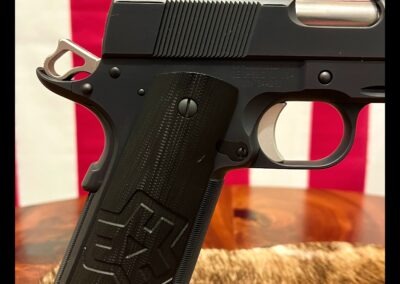

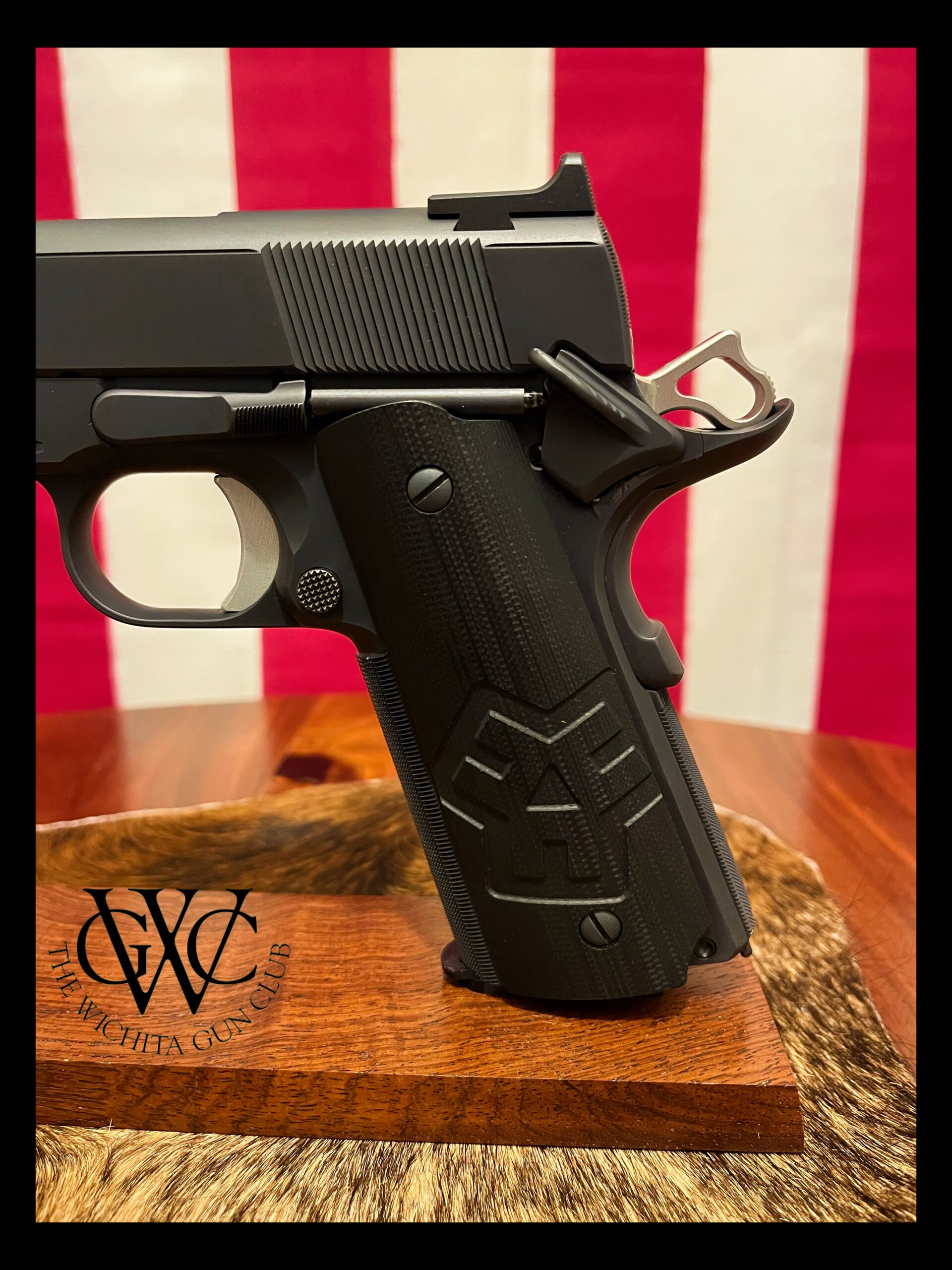

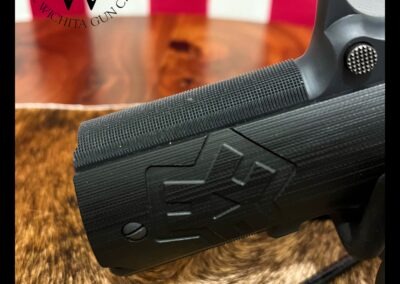

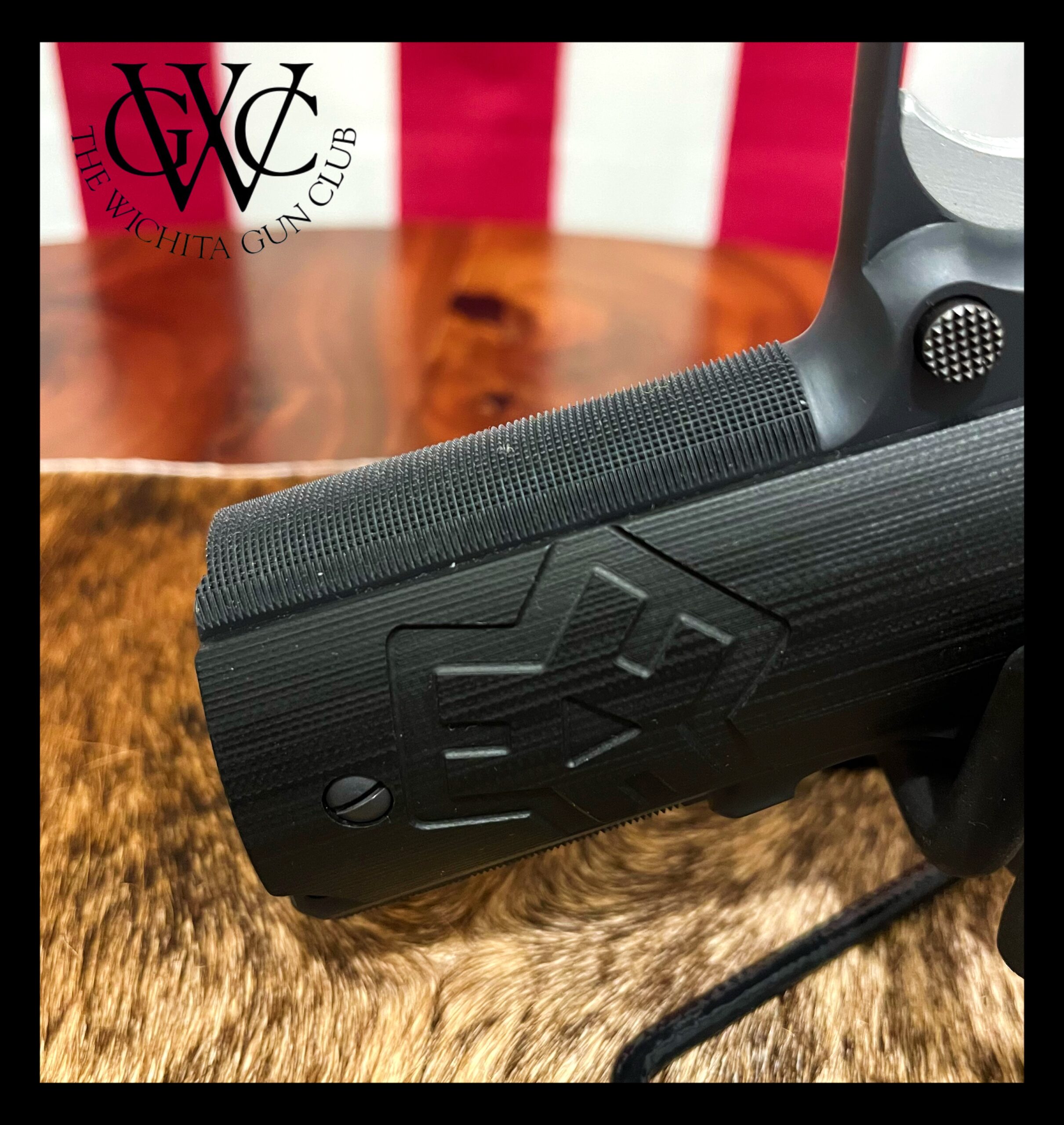

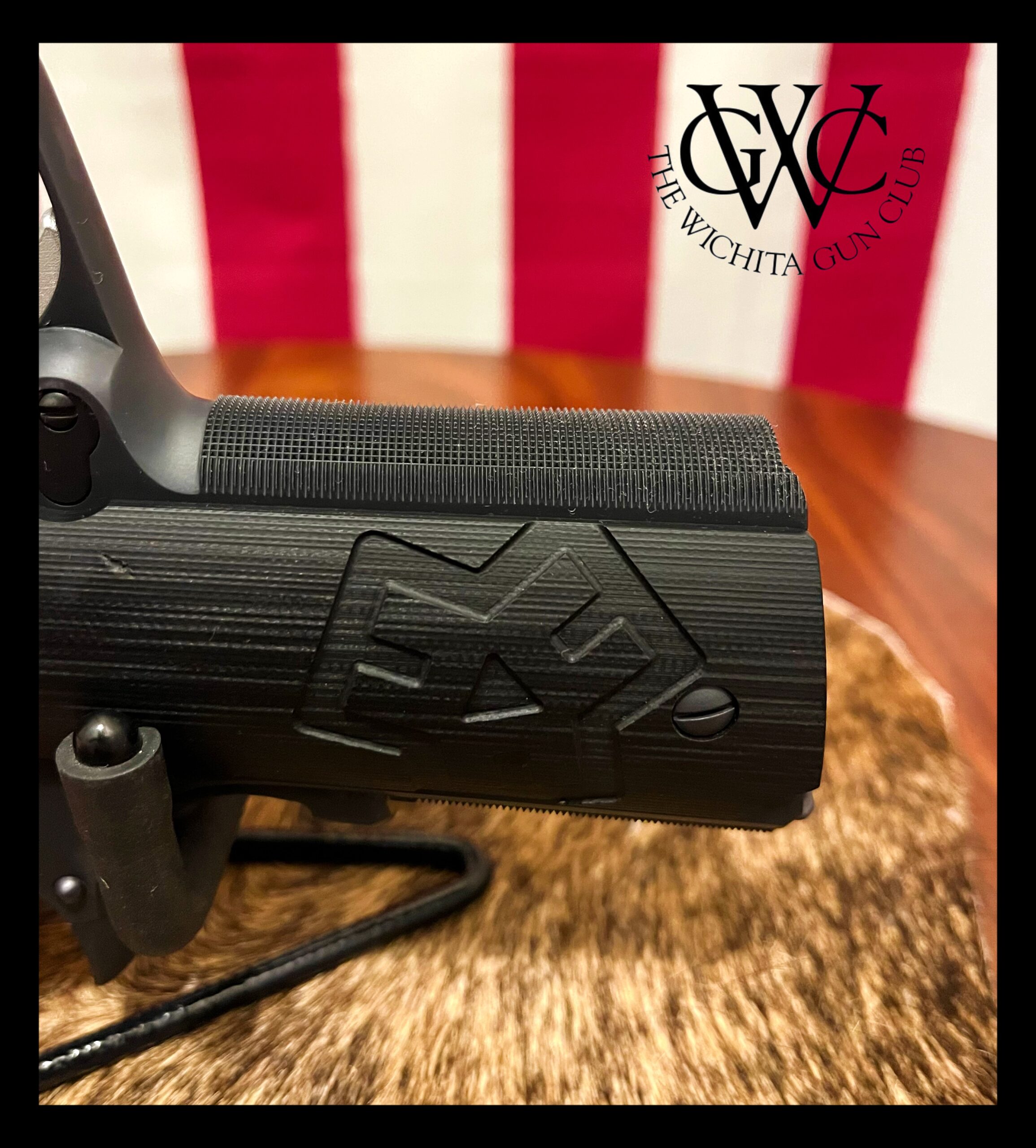

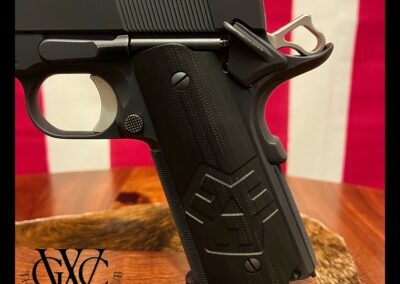

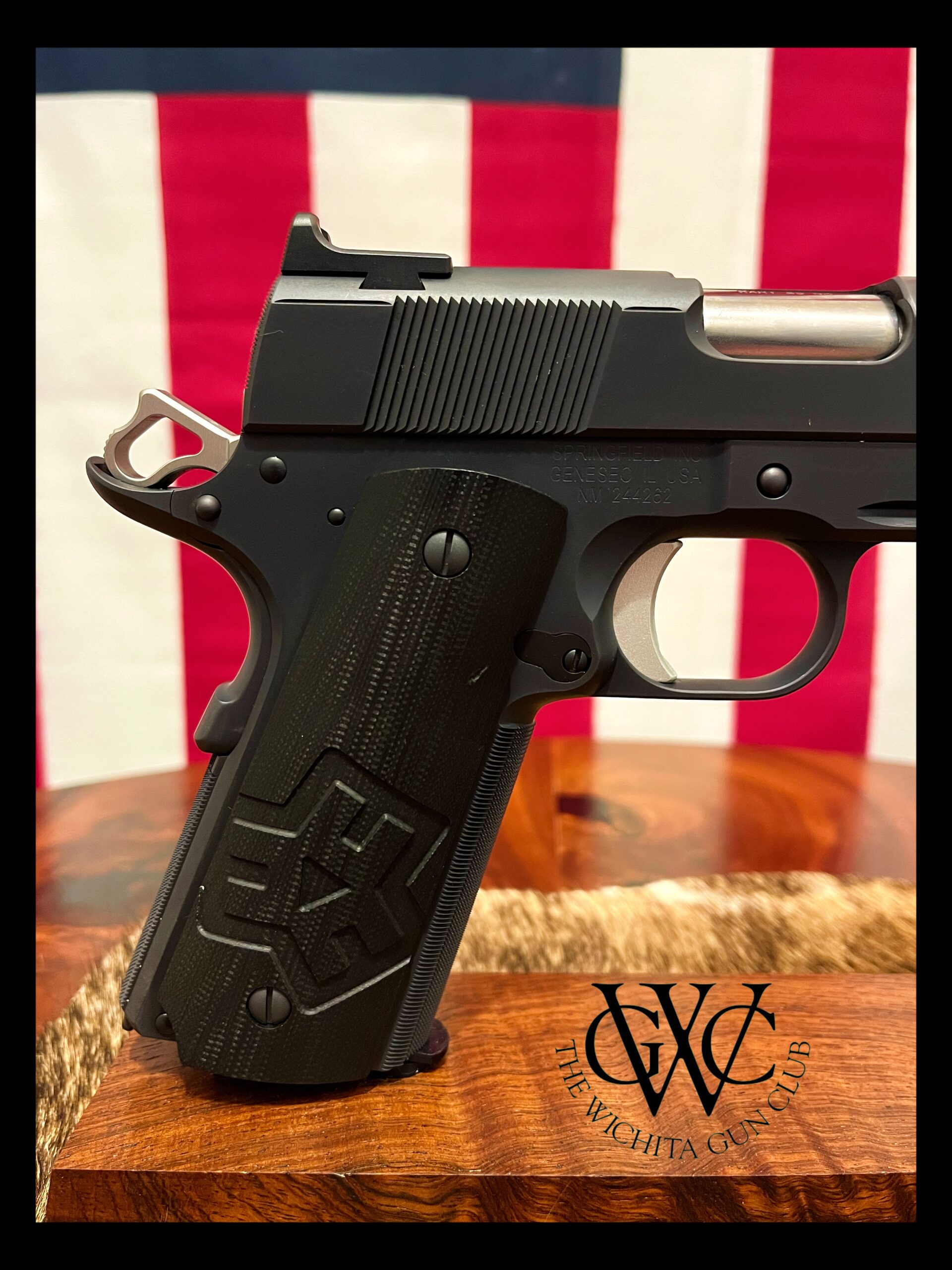

- Fit standard thickness EraThr3 logoed G10 stock panels
- Number and index stock screws; odd numbers on left, even numbers on right, low number on top
- Zero @ 25 yards with 230gr FMJ
- Original grips are included

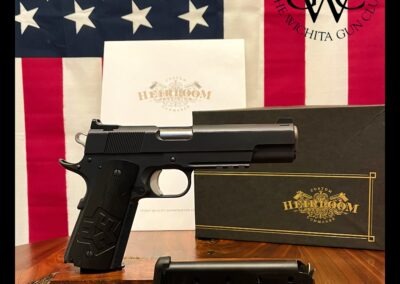

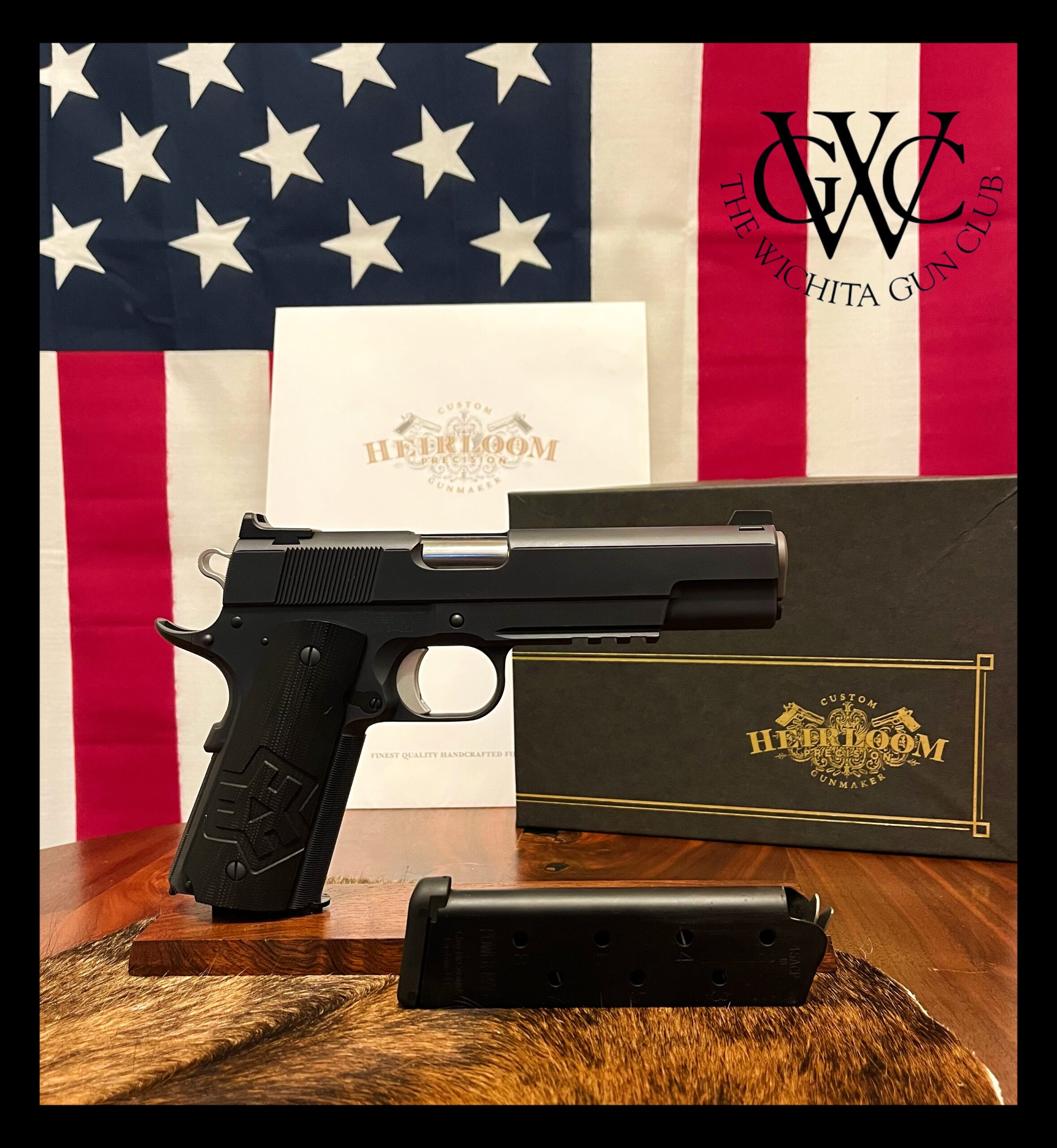

The pistol comes with three copies of the build sheet, HP manual and HP box
